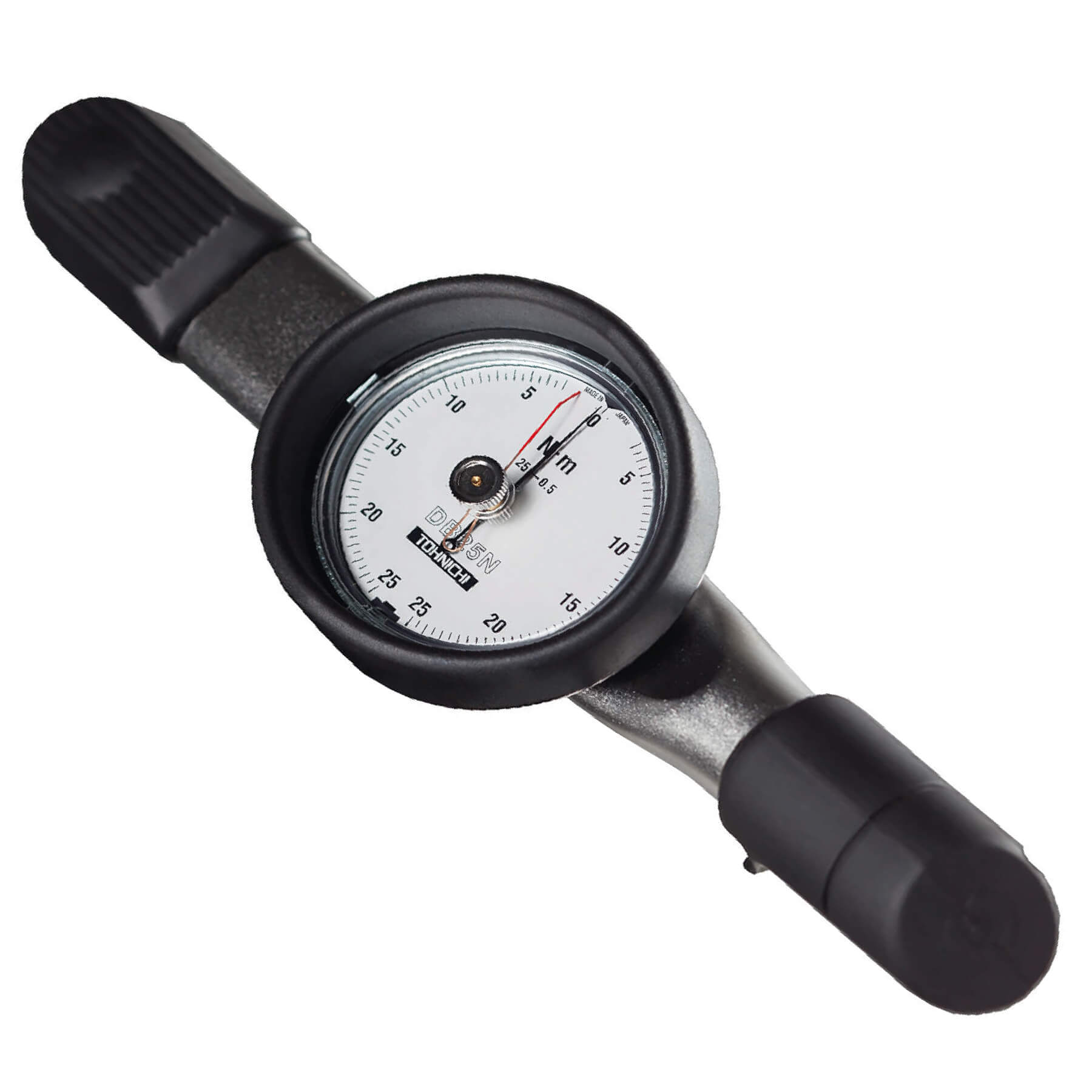

Torquímetro de carátula, alta precisión.
Para verificaciones sencillas y auditoría.
- Amplio rango, alta precisión, fácil de leer con su gran escala.

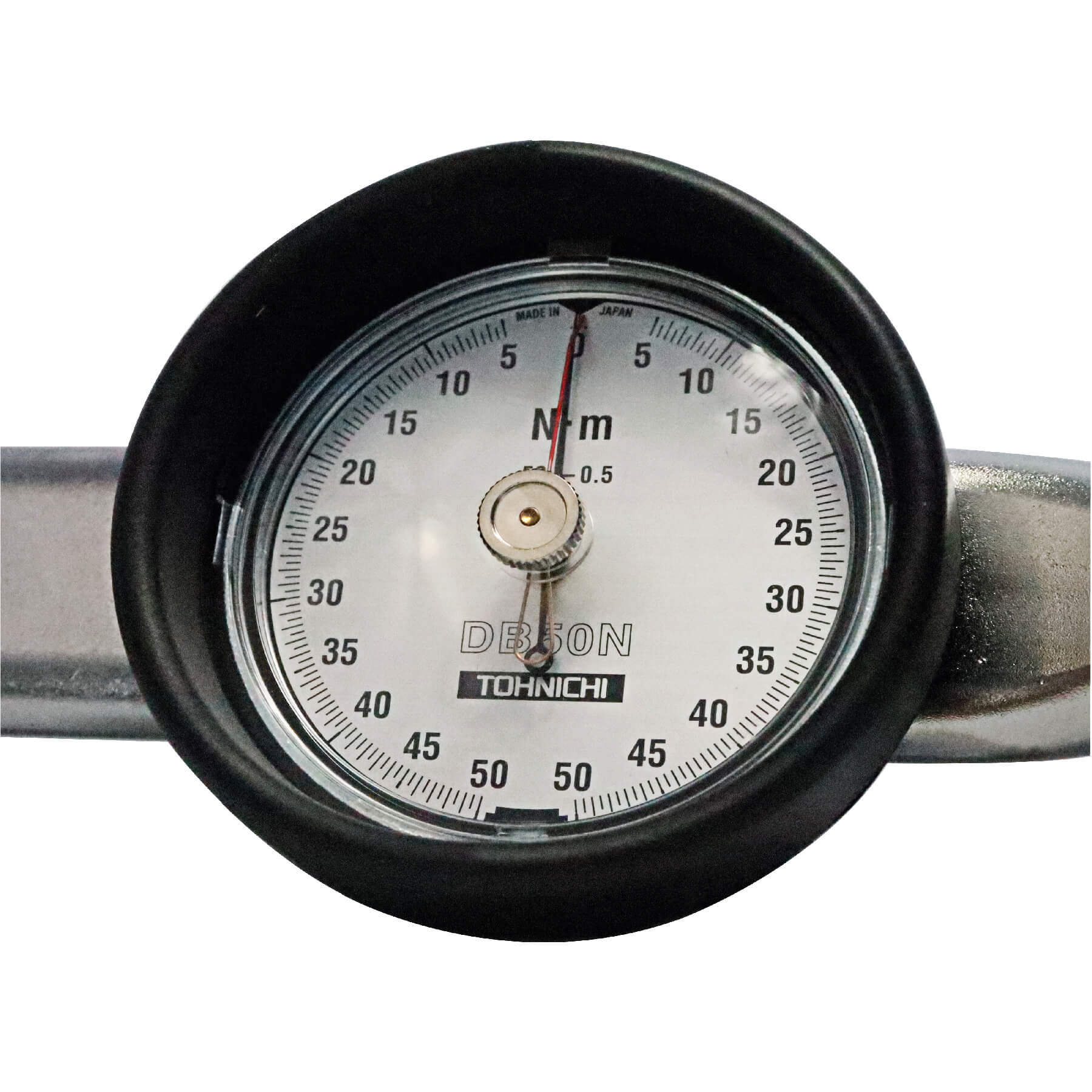

- Carátula con memory pointer que captura la lectura "pico".
- La carátula tiene una cubierta protectora a los costados que previene daños de objetos externos.
- Cumple con los procedimientos de calibración ISO 6789 VIGENTE.
- Función sugerida: Para auditorías de calidad o aprietes.
- Exactitud: 3%
Cotizar
| SKU CODE | N·m | SKU CODE | kgf·cm/kgf·m | SKU CODE | lbf·in/lbf·ft | Longitud | Cuadro | Peso | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| [min-máx.] | Grad. | [min-máx.] | Grad. | [min-máx.] | Grad. | [mm] | [kg] | ||||
| DB1.5N4-S | 0.2-1.5 | 0.02 | 15DB4-S | 2-15 | 0.2 | DB13I-2AS | 0-13 | 0.2 | 205 | 6.35 | 0.4 |
| DB3N4-S | 0.3-3 | 0.05 | 30DB4-S | 3-30 | 0.5 | DB26I-2AS | 0-26 | 0.5 | 205 | 6.35 | 0.4 |
| DB6N4-S | 0.6-6 | 0.1 | 60DB4-S | 6-60 | 1 | DB40I-2AS | 0-40 | 0.5 | 205 | 6.35 | 0.4 |
| DB12N4-S | 1-12 | 0.2 | 120DB4-S | 10-120 | 2 | DB75I-2AS | 0-75 | 1 | 205 | 6.35 | 0.4 |
| DB25N-1/4-S | 3-25 | 0.5 | 230DB3-1/4-S | 30-250 | 5 | DB150I-2AS | 0-150 | 2 | 245 | 6.35 | 0.6 |
| DB25N-S | 3-25 | 0.5 | 230DB3-S | 30-250 | 5 | DB150I-3AS | 0-150 | 2 | 245 | 9.5 | 0.6 |
| DB50N-S | 5-50 | 0.5 | 450DB3-S | 50-500 | 5 | DB300I-3AS | 0-300 | 5 | 320 | 9.5 | 0.6 |
| DB100N-3/8-S | 10-100 | 1 | 900DB3-3/8-S | 100-1000 | 10 | DB25F-3AS | 0-25 lbf·ft | 0.5 lbf·ft | 320 | 9.5 | 0.6 |
| DB100N-S | 10-100 | 1 | 900DB3-S | 100-1000 | 10 | DB600I-3AS | 0-600 | 10 | 400 | 9.5 | 0.7 |
| - | - | - | - | - | - | DB50F-3AS | 0-50 lbf·ft | 0.5 lbf·ft | 400 | 9.5 | 0.7 |
| - | - | - | - | - | - | DB600I-4AS | 0-600 | 10 | 400 | 12.7 | 0.7 |
| - | - | - | - | - | - | DB50F-4AS | 0-50 lbf·ft | 0.5 lbf·ft | 400 | 12.7 | 0.7 |
| DB200N-S | 20-200 | 2 | 1800DB3-S | 200-2000 | 20 | DB100F-4AS | 0-100 lbf·ft | 1 lbf·ft | 500 | 12.7 | 1.0 |
| DB280N-1/2-S | 30-280 | 5 | 2800DB3-1/2-S | 3-28 kgf·m | 0.5 kgf·m | - | - | - | - | 12.7 | - |
| DB280N-S | 30-280 | 5 | 2800DB3-S | 3-28 kgf·m | 0.5 kgf·m | - | - | - | - | - | - |
| - | - | - | - | - | - | DB175F-4AS | 0-175 lbf·ft | 2 lbf·ft | 580 | 12.7 | 1.0 |
| DB420N-S | 40-420 | 5 | 4200DB2-S | 4-42 kgf·m | 0.5 kgf·m | DB250F-6AS | 0-250 lbf·ft | 5 lbf·ft | 690 | 19.05 | 1.65 |
| DBE560N-S | 50-560 | 5 | 5600DBE2-S | 5-56 kgf·m | 0.5 kgf·m | DB350F-6AS | 0-350 lbf·ft | 5 lbf·ft | 890 | 19.05 | 4 |
| DBE700N-S | 70-700 | 10 | 7000DBE2-S | 7-70 kgf·m | 1 kgf·m | DB500F-6AS | 0-500 lbf·ft | 10 lbf·ft | 1260 | 19.0 | 5.5 |
| DBE850N-S | 100-850 | 10 | 8500DBE2-S | 10-85 kgf·m | 1 kgf·m | - | - | - | 1360 | 25.4 | 6.1 |
| DBE1000N-S | 100-1000 | 10 | 10000DBE2-S | 10-100 kgf·m | 1 kgf·m | DB800F-8AS | 0-800 lbf·ft | 10 lbf·ft | 1490 | 25.4 | 6.4 |
| DBE1400N-S | 200-1400 | 20 | 14000DBE2-S | 20-140 kgf·m | 2 kgf·m | DB1000F-8AS | 0-1000 lbf·ft | 10 lbf·ft | 1740 | 25.4 | 8.6 |
| DBE2100N-S | 200-2100 | 20 | 21000DBE2-S | 20-210 kgf·m | 2 kgf·m | DB1500F-8AS | 0.1500 lbf·ft | 20 lbf·ft | 2140 | 25.4 | 12.8 |
| DBE2800N-S | 300-2800 | 20 | 28000DBE2-S | 30-280 kgf·m | 5 kgf·m | DB2000F-12AS | 0-2000 lbf·ft | 20 lbf·ft | 2380 | 38.1 | 16.8 |
| DBR4500N-S | 0.5-4.5 kN·m | 0.05 kN·m | 45000DBR-S | 50-450 kgf·m | 5 kgf·m | DB3000F-12AS | 0-3000 lbf·ft | 50 lbf·ft | 1285 | 38.1 | 26.5 |
| DBR6000N-S | 0.6-6 kN·m | 0.1 kN·m | 60000DBR-S | 60-600 kgf·m | 5 kgf·m | - | - | - | 1585 | 44.5 | 27.5 |
| Producto | Torquimetros |
|---|---|
| Tipo | Analógico |
| Aplicación | Auditoría, Producción |
| Industria | Aeroespacial, Aeronáutico, Alimenticio, Automotriz, Farmacéutico, Manufactura |
