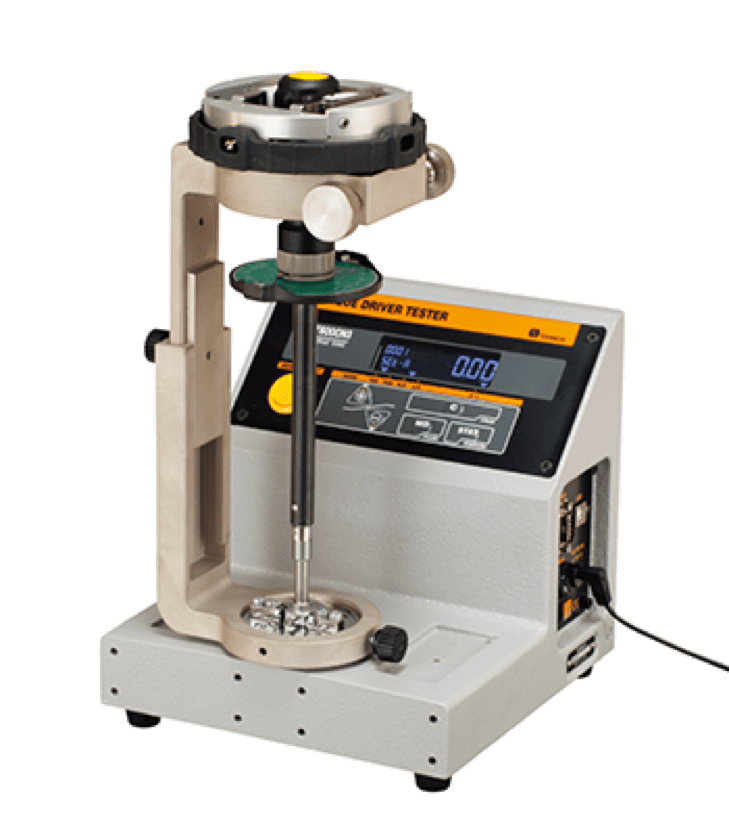

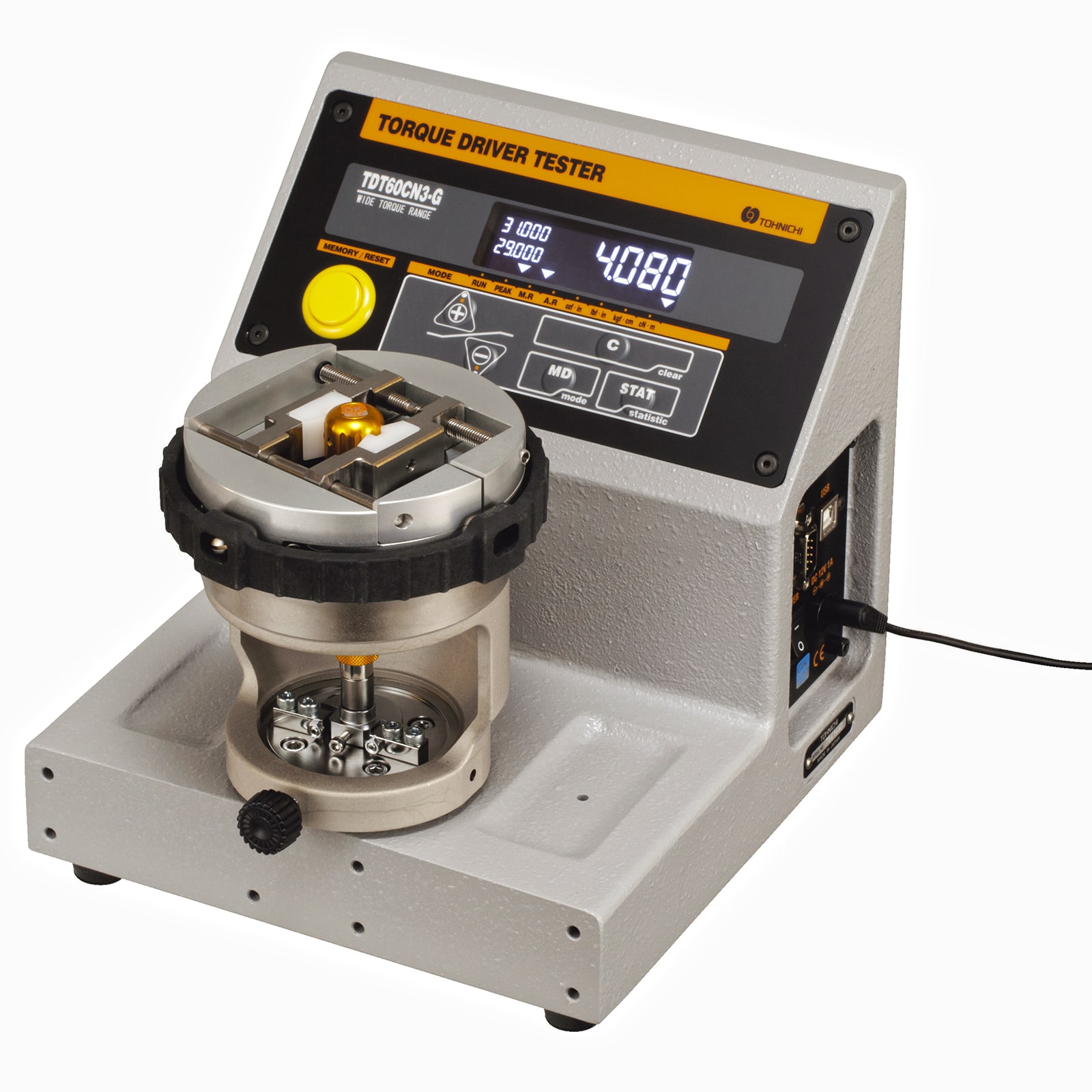

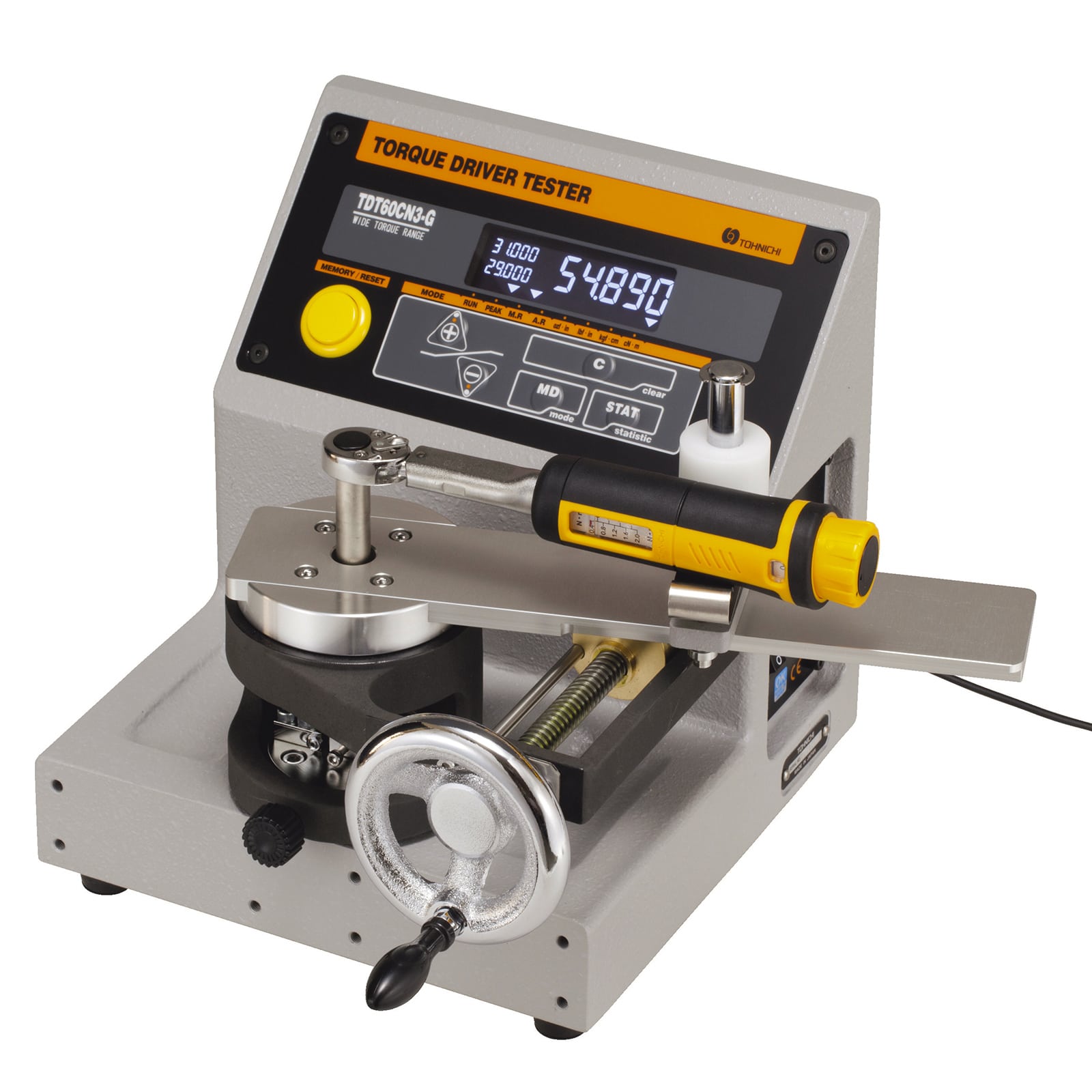

Torque Wrench Tester
Ideal for verification and testing of low-range screwdriver-type torque wrenches and screwdrivers.
Equipped with a load application device to eliminate measurement errors.
- Accuracy: ±1%.
- Designed for calibration and adjustment of low torque ranges.
- Digital torque tester eliminates visual reading errors.
- Load application device ensures stable measurement conditions, avoiding reading inaccuracies.
- Broad measurement range compatible with various types of torque wrenches.
- RS232C output enables data transfer to a PC or printer.
- Simulator joints are required for screwdriver verification.
Request a Quote
| SKU CODE | cN·m | kgf·cm | off·in | lbf·in | Chart | Length | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| min.-max. | 1 digit | min.-max. | 1 digit | 1 digit | 1 digit | mm | kg | ||||
| AD-TDT60CN3-G | 2-60 | 0.005 | 0.2-6 | 0.0005 | 3-80 | 0.0005 | 0.2-5 | 0.0005 | 1/4 | 230 | 11 |
| AD-TDT600CN3-G | 20-600 | 0.05 | 2-60 | 0.005 | 30-800 | 0.005 | 2-50 | 0.005 | 1/4 | 230 | 11 |
| Product | Analysis, Verification & Audit |
|---|---|
| Type | Digital, Mechanical |
| Application | Auditing, Quality |
| Industry | Aerospace, Aeronautics, Food, Automotive, Pharmaceutical, Manufacturing |
