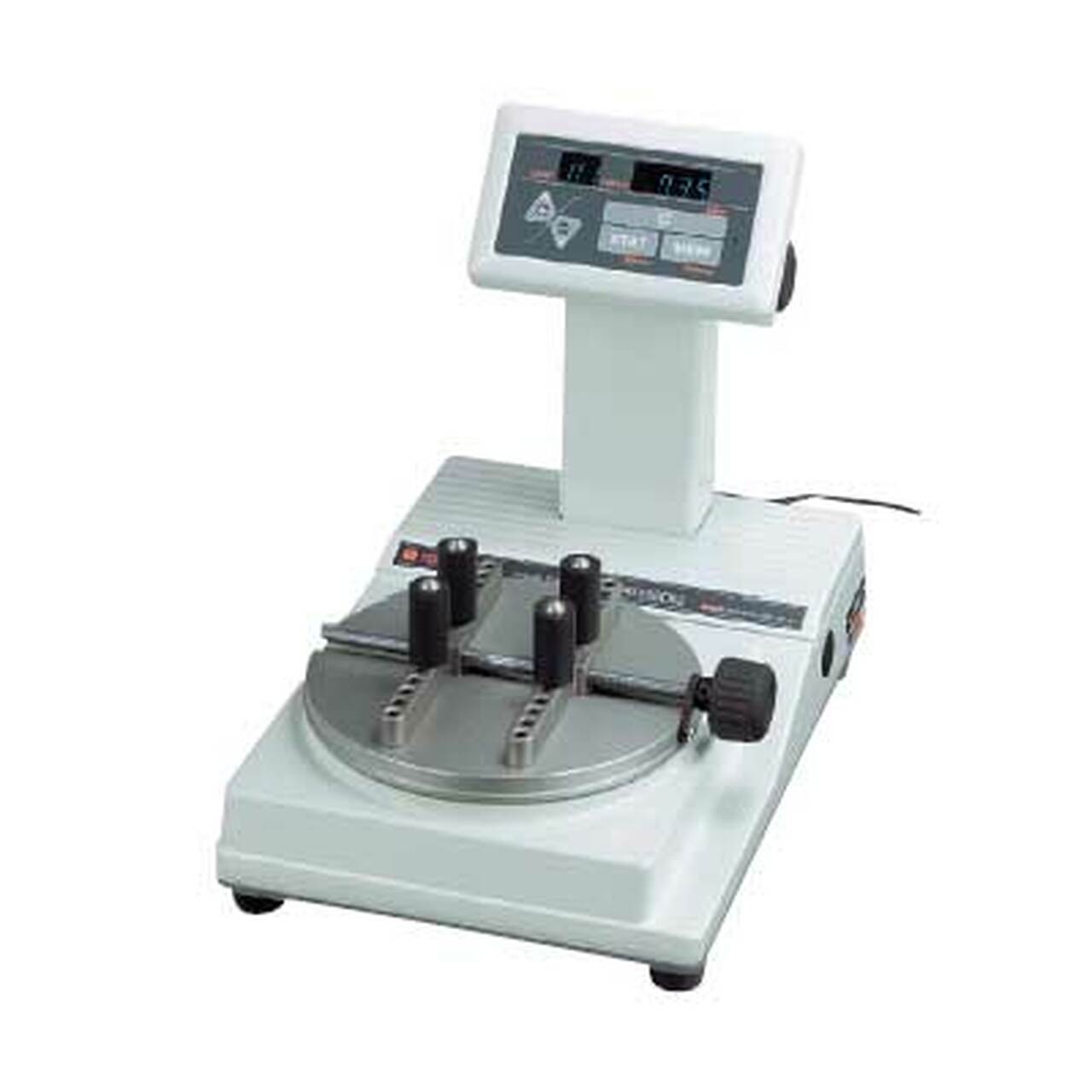

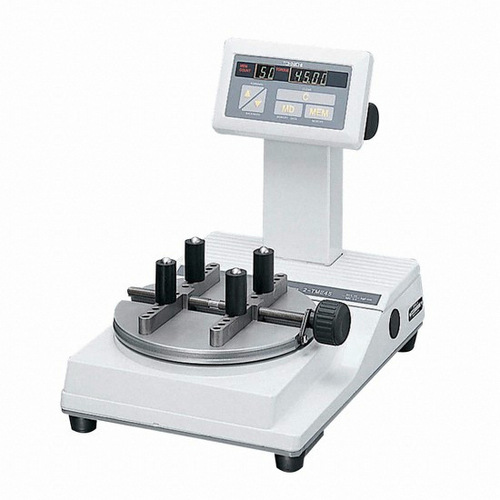

Digital Torque Tester with Data Processing
For verifying the torque of bottled or packaged products.
- Digital torque meter with data processing function.
- Bidirectional digital torque. Accuracy ±1% + 1 digit.
- Equipped with 4 posts that can be repositioned according to the shape of the object, securing it firmly during testing.
- Up to 99 data readings can be stored in internal memory.
- Stored data can be transferred to a PC or printer via the RS232C output (standard feature).
- The analog output terminal (approx. ±4 V) allows connection to a recorder, etc.
- The adjustable angle display with a large fluorescent indicator panel provides enhanced visibility.
- Power source: AC100 to 240V ±10%. A battery pack is also available as an option.
- CE marked.
- Excel Receiver software is a data entry tool for Excel® data management.
Request a Quote
| SKU CODE | cN·m | SKU CODE | gf·cm/kgf·cm | SKU CODE | ozf·in/lbf·in | Chuck grip | Length | Broad | Height | Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [min-max] | Grad. | [min-max] | Grad. | [min-max] | Grad. | [mm] | [mm] | [mm] | [kg] | ||||
| 3TME10CN2 | 2.00-10.00 | 0.01 | 3TME10CN2-M | 200-1000 | 1 | 3TME10CN2-Z | 2.80-14.00 | 0.01 | Ø14-Ø110 | 252 | 158 | 185 | 3.5 |
| 3TME20CN2 | 4.00-20.00 | 0.02 | 3TME20CN2-M | 400-2000 | 2 | 3TME20CN2-Z | 5.60-28.00 | 0.02 | Ø14-Ø110 | 252 | 158 | 185 | 3.5 |
| 3TME50CN2 | 10.00-50.000 | 0.05 | 3TME50CN2-M | 1000-5000 | 5 | 3TME50CN2-Z | 14.00-70.00 | 0.05 | Ø14-Ø110 | 252 | 158 | 185 | 3.5 |
| 3TME100CN2 | 20.0-100.0 | 0.1 | 3TME100CN2-M | 2.00-10.00 kgf·cm | 0.01kgf·cm | 3TME100CN2-Z | 28.00-140.00 | 0.1 | Ø14-Ø110 | 252 | 158 | 185 | 3.5 |
| 2TME200CN2 | 40.0-200.0 | 0.2 | 2TME200CN2-M | 4.00-20.00 kgf·cm | 0.02kgf·cm | 2TME200CN2-I | 3.50-17.00lbf·in | 0.02 lbf·in | Ø18-Ø190 | 331 | 223 | 283 | 12 |
| 2TME500CN2 | 100.0-500.0 | 0.5 | 2TME500CN2-M | 10.00-50.00 kgf·cm | 0.05 kgf·cm | 2TME500CN2-I | 8.80-44.00 lbf·in | 0.05 lbf·in | Ø18-Ø190 | 331 | 223 | 283 | 12 |
| 2TME1000CN2 | 200-1000 | 1 | 2TME1000CN2-M | 20.0-100.0 kgf·cm | 0.1 kgf·cm | 2TME1000CN2-I | 17.6-88.00 lbf·in | 0.1 lbf·in | Ø18-Ø190 | 331 | 223 | 283 | 12 |
| 2TME2000CN2 | 400-2000 | 2 | 2TME2000CN2-M | 2.00-10.00 kgf·cm | 0.2 kgf·cm | 2TME2000CN2-I | 35.0-175.0 lbf·in | 0.2 lbf·in | Ø18-Ø190 | 331 | 223 | 283 | 12 |
| Product | Analysis, Verification & Audit |
|---|---|
| Type | Digital |
| Application | Auditing, Quality |
| Industry | Aerospace, Aeronautics, Food, Automotive, Pharmaceutical, Manufacturing |
