Cordless screwdriver: maximum repeatability.
Precision, Power and Performance Lightweight, Durable, Efficient
Designed for high-volume production assembly and compliant with ISO 5393, these cordless pistol-grip and angle screwdrivers are the ideal solution for "B" and "C" type joints that don’t require torque protection. Offering outstanding durability and energy efficiency, they help reduce operating costs while extending tool life. At just 1.3 kg, they are easy to handle, even during extended shifts.
- Disconnect Clutch: Exceeds ISO 10% tolerance for reliable performance.
- Wide Torque Range: Flexible for various tightening applications.
- Process Control: Adjustable multi-stage tightening via USB interface for precise control.
- Battery Charge Indicator: Visual and audible alerts for battery status.
- OK/NOK Torque Indicator: Ensures accurate and quality-controlled assembly.
- LED Worklight: Programmable lighting enhances workspace visibility.
- Forward/Reverse Switch: Manual trigger for easy operation.
- Internal Electronics: Prevents low torque when the battery charge is low.
- Anti-Repetition Protection: Prevents accidental repeated tightening.
- Efficiency with greater speed and a motor with Bosch EC technology.
- Battery Management: Prevents low torque at the end of the battery’s charge with internal electronics.
- Anti-Repetition Safety: Prevents accidental repeated tightening for secure assembly.
Request a Quote
| SKU CODE | N·m | Speed | Weight |
|---|---|---|---|

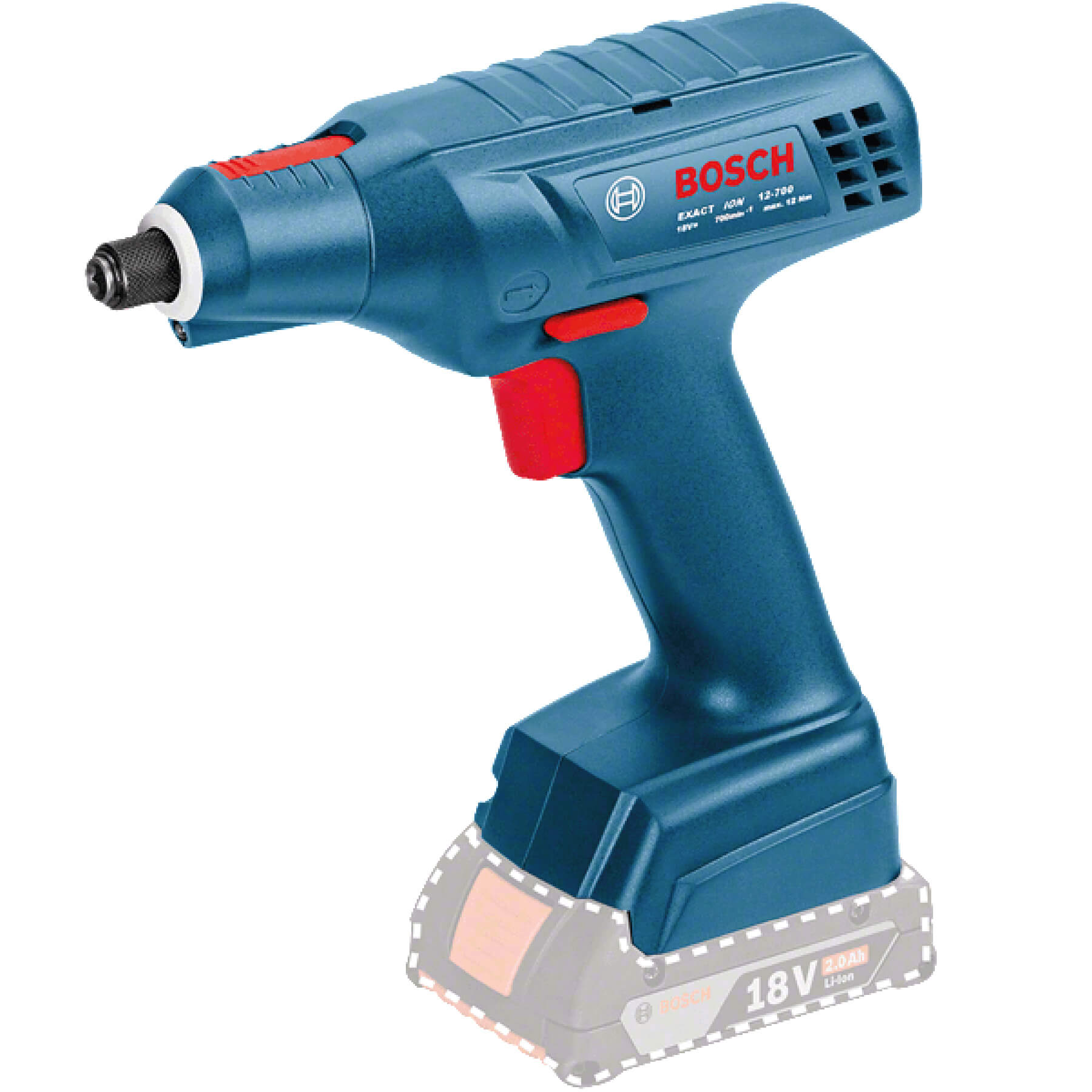

| Pistol type | [min-max] | [rpm min.] | [kg] |
| EXACT ION 4-2000 | 1.5 – 4 | 200 – 2,000 | 1,3 |
| ACCURACY 6-1500 | 1 – 6 | 150 – 1,500 | 1,3 |
| ACCURACY 8-1100 | 2 – 8 | 110 – 1,100 | 1,3 |
| ACCURACY 12-700 | 2 – 12 | 70 – 700 | 1,3 |
| ACCURACY 12-450 | 2 – 12 | 45 – 450 | 1,3 |

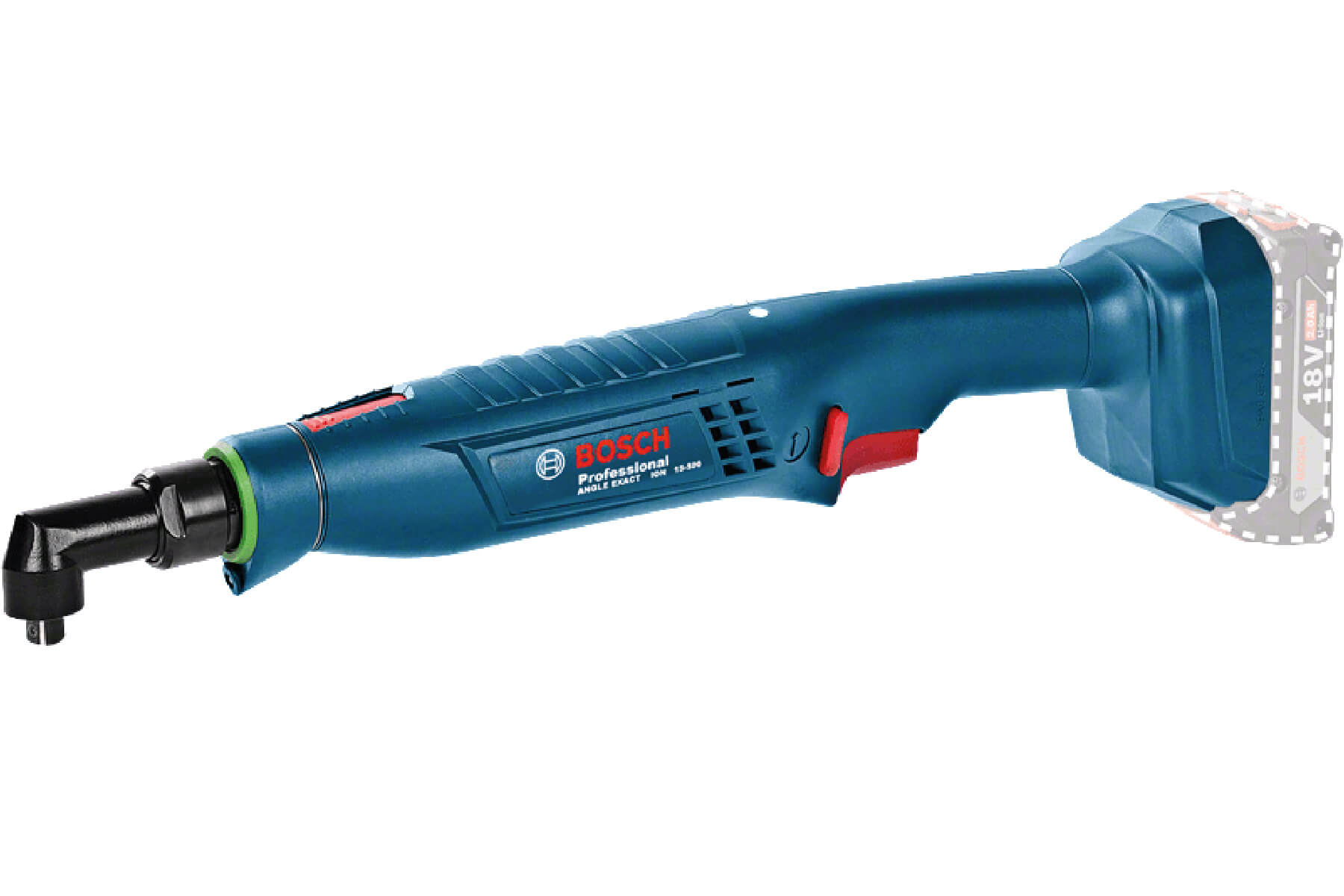

| Angle type | |||
| ANGLE ACCURACY 8-1100 | 2 – 8 | 110 – 1,100 | 1.7 |
| ANGLE ACCURACY 15-500 | 2 – 15 | 52 – 520 | 1.7 |
| ANGLE ACCURACY 23-380 | 10 – 23 | 38 – 380 | 2.2 |
| ANGLE ACCURACY 30-300 | 10 – 30 | 30 – 300 | 2.4 |
| ANGLE ACCURACY 40-220 | 20 – 40 | 22-220 | 2.4 |
| ANGLE ACCURACY 50-210 | 15 – 50 | 19 – 185 | 2.4 |
| ANGLE ACCURACY 60-120 | 20 – 60 | 12 – 120 | 2.4 |
| Product | Screwdrivers |
|---|---|
| Type | Cordless |
| Application | Production |
| Industry | Automotive, Pharmaceutical, Manufacturing |
